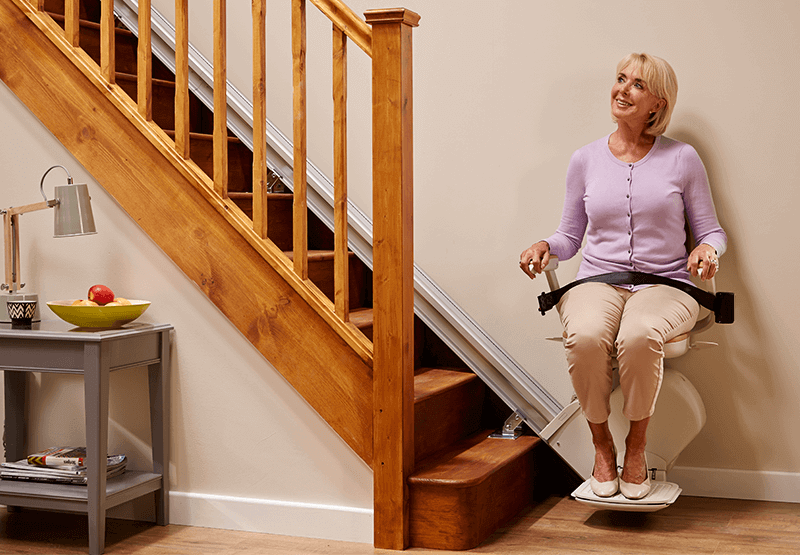

A straight stairlift is the ultimate staircase solution, giving you the full use of the home you love. Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs.
Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide. Contact us for FREE no obligation advice and speak to one of our friendly experts.

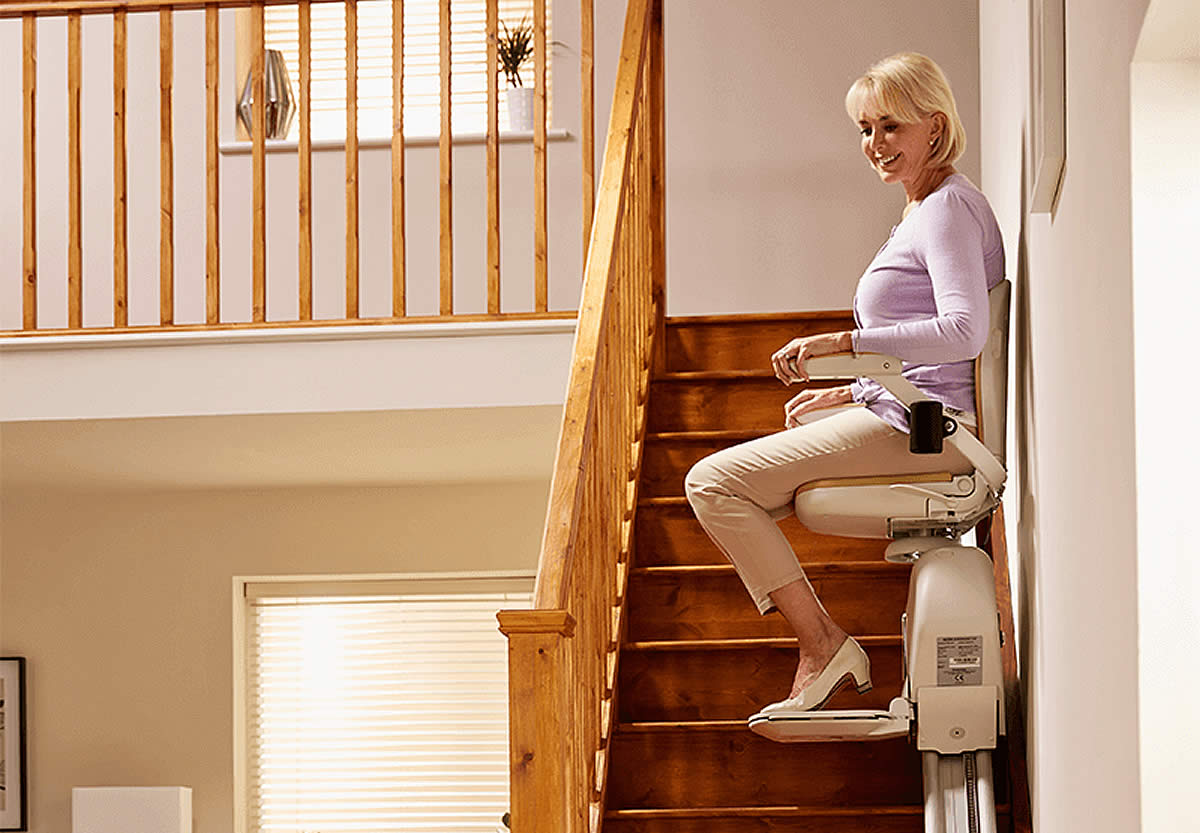

All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs. Acorn Stairlifts have all the features you need, and none you don't!
Why not request your free brochure today?
All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.
Our comprehensive home survey is completely free and you're under no obligation to buy!
FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration
Contact us for FREE no obligation advice and speak to one of our friendly experts.
| Short seat post | 40-55° | |
| Standard seat post | 29-55° | |
| Tall seat post | 23-55° | |
| Standard seat post | 36-55° | |
| Tall seat post | 23-55° | |
| Standard seat post | 27-55° | |
| 10 metres | 394 inches | |

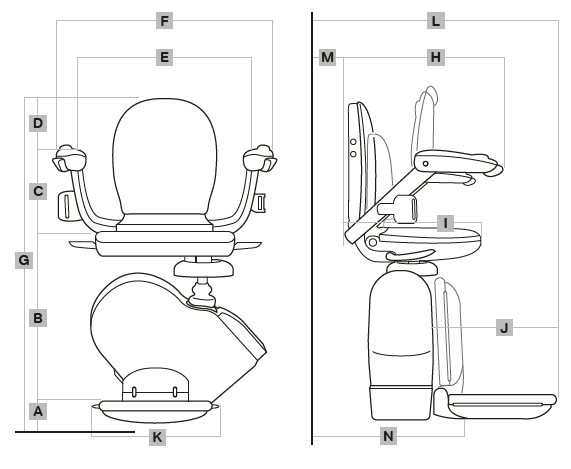

| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 95 | 3.75 |
| B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) |
| C | Top of seat to top of arms | 250 | 9.75 |
| D | Top of arms to top of seat back | 190 | 17.5 |
| E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) |
| F | Overall width | 605 | 23.75 |
| G | Overall height to floor | 980 | 38.5 |
| H | Length of arms from seat back | 470 | 18.5 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 325 | 12.75 |
| K | Width of footrest | 310 | 12.25 |
| L | Front of footrest to stringer | 570 | 22.5 |
| M | Back of seat to stringer | 13 | 0.5 |
| N | Folded width | 310 | 12.25 |
| O | Minimum width required to swivel at top | 670 | 26.25 |
| P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) |
This stairlift is tested and certified to:
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Carriage Power | 24v DC batteries |
| Motor Power | 0.25KW |
| Maximum capacity | 127kg |
| Maximum capacity HD version | 159kg |
| Power supply input range | 50-60Hz, 120-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
