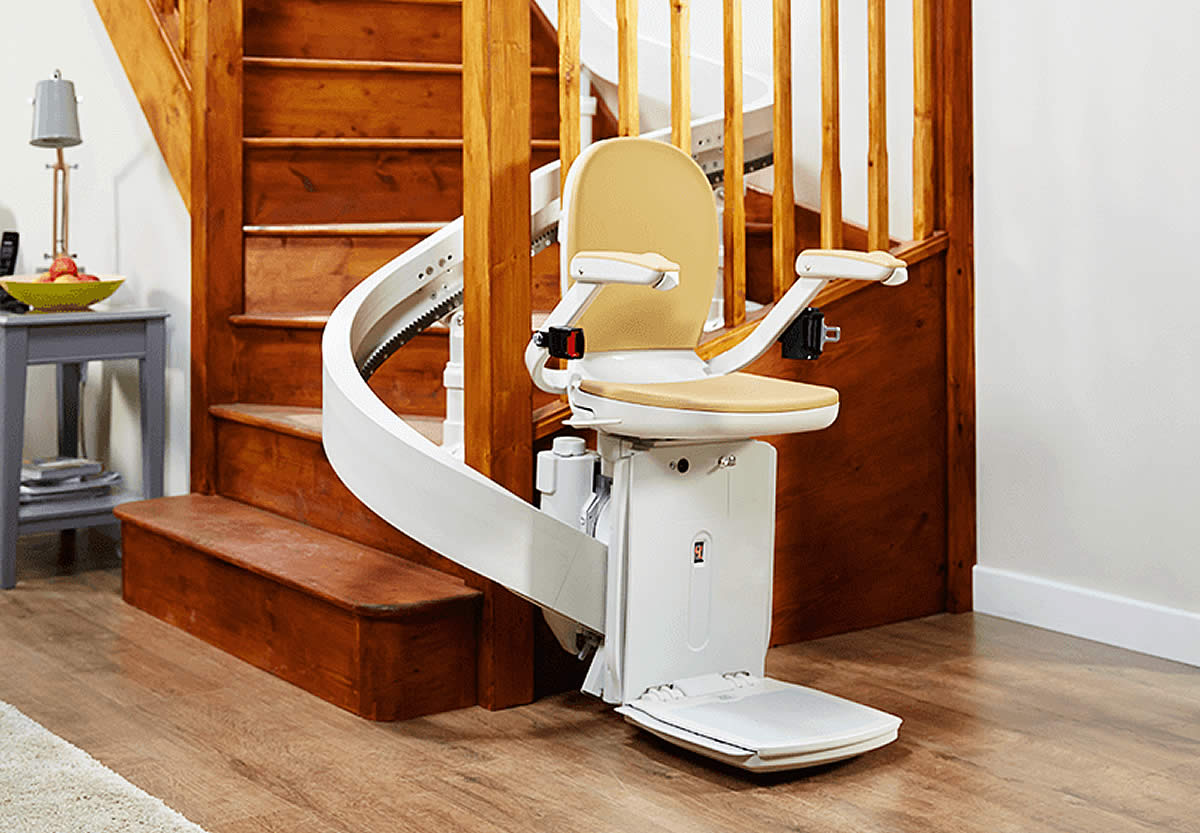

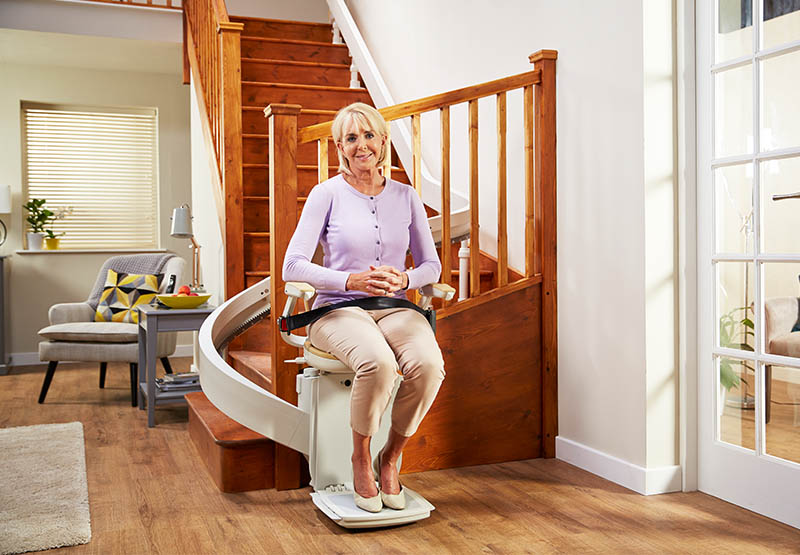

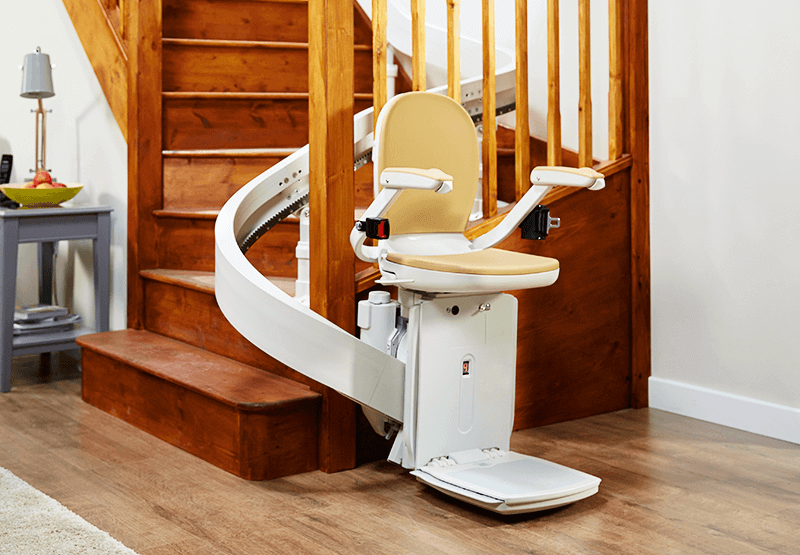

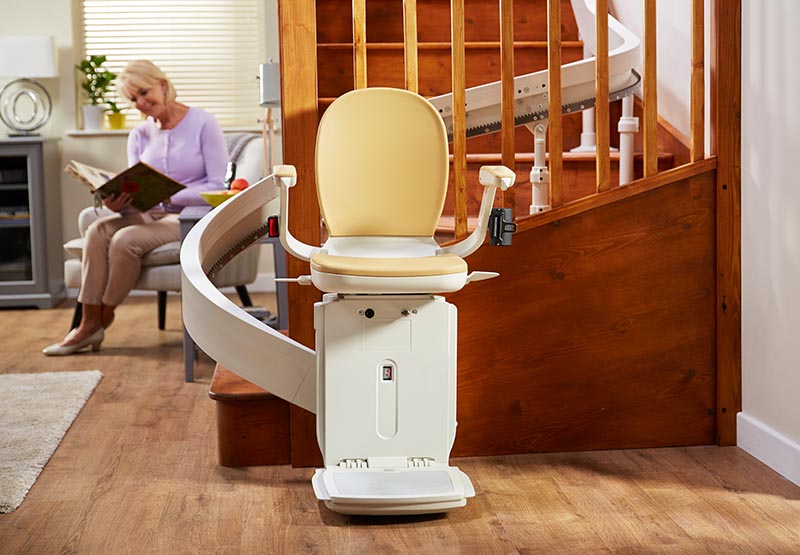

Designed from the ground-up for any curved staircase, this curved stairlift offers a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system, coming to a soft stop with ease.
With its low running costs, it even operates through a power cut. The sleek, smooth and modern rail system is unique to this stairlift. There is no waiting weeks to have an expensive rail made for your home. Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.
To learn more about our curved stairlift prices and installation, contact us to get your free stairlift quote from Acorn Stairlifts or simply for more advice.
Automatic powered hinges can be fitted when there is an opening or doorway at the foot of the stairs. An automatic powered hinged rail solves this problem. Acorn Stairlifts have all the features you need, and none you don't!
Why not request your free brochure today?
All Acorn stairlifts — including our curved stairlifts — fit directly to the staircase, not the wall, so installation is quick and mess-free.
Our comprehensive home survey is completely free and you're under no obligation to buy!
FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration
Contact us for FREE no obligation advice and speak to one of our friendly experts.
| Min | 0° | |
| Max | 58° | |
| 30 metres | 1181 inches | |

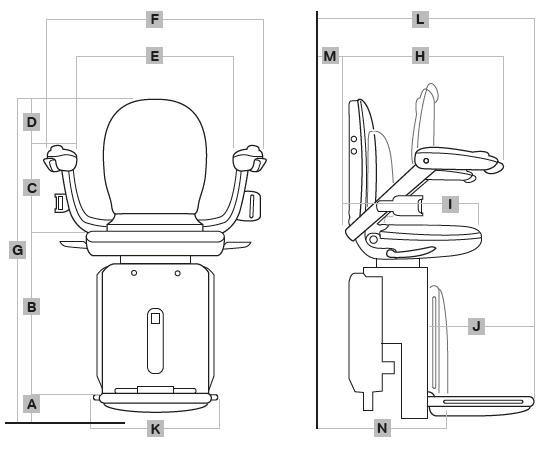

| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 |
| B | Top of footrest to top of seat | 485 | 19 |
| C | Top of seat to top of arms | 245 | 9.75 |
| D | Top of arms to top of seat back | 195 | 7.75 |
| E | Width between armrests | 480 | 19 |
| F | Overall width including seatbelt | 620 | 24.5 |
| G | Overall height | 975 | 38.25 |
| H | Length of arms from seat back | 460 | 18 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 360 | 14.25 |
| K | Width of footrest | 375 | 14.75 |
| L | Front of footrest to stringer | 640 | 25.25 |
| M | Back of seat to stringer | 35 | 1.5 |
| N | Folded width | 335 | 13.25 |
| O | Minimum width required to swivel at top | 690 | 27.25 |
| P | Distance from front of rail to stringer | 180 | 7 |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) |
| R | Front of drop nose to first stair | 450 | 17.75 |
This stairlift is tested and certified to:
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 meters per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240v AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
